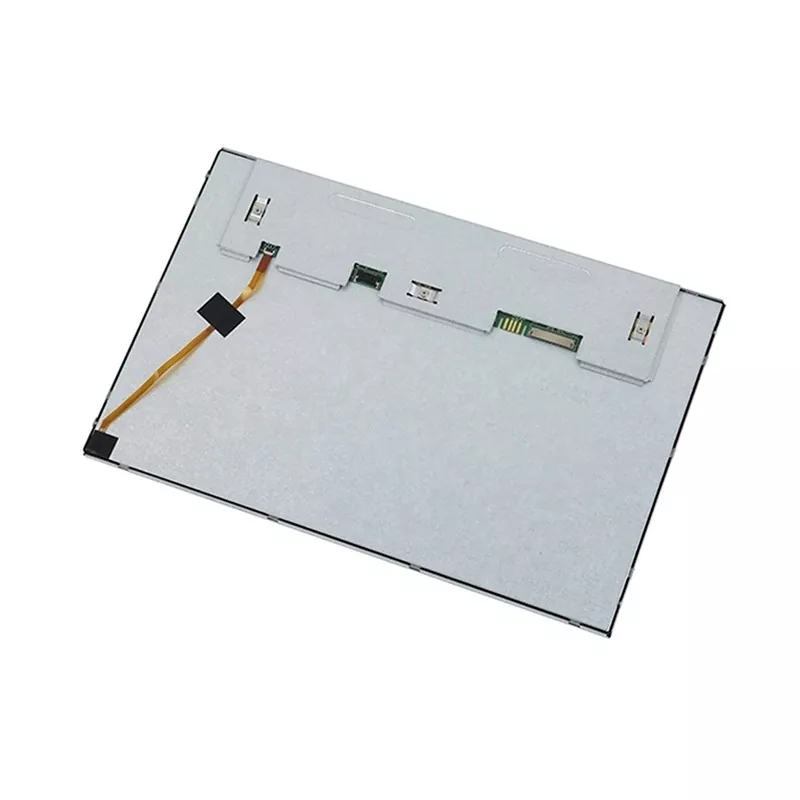

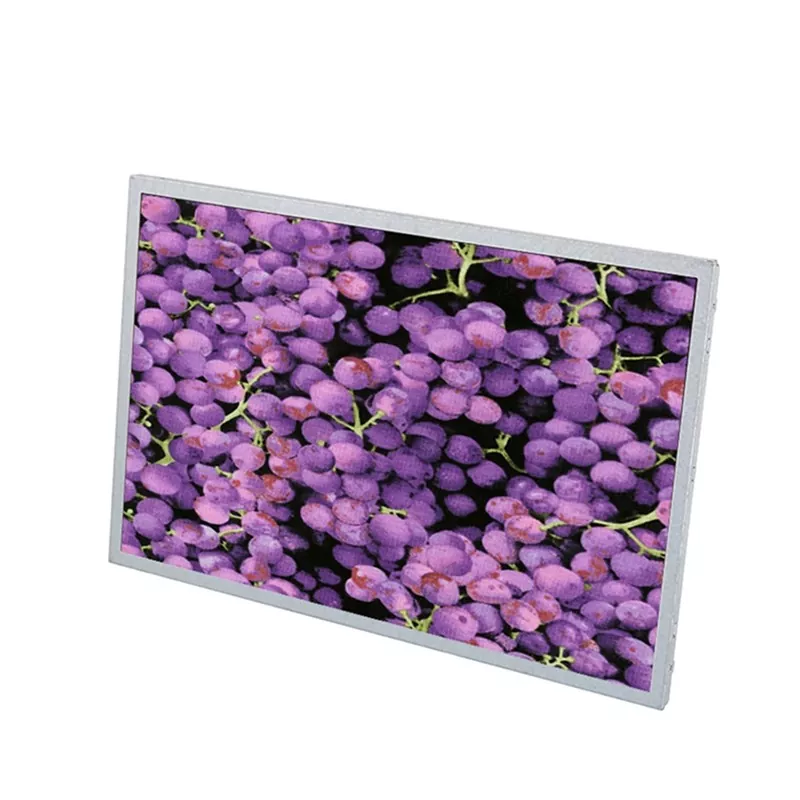

12.1 inch 1280x800 IPS TFT Module

This Victronix 12.1 inch 1280x800 IPS TFT Module delivers exceptional visual performance with its 12.1-inch IPS TFT-LCD panel. Featuring 1280 × 800 resolution and 16.7 million colors, it ensures crisp, vibrant images with wide viewing angles. As a professional TFT module manufacturer and supplier in China, this Victronix 12.1inch TFT Module uses an industrial-grade design and 6/8-bit LVDS Interface to provide superior application performance.

మోడల్:VXT121QIHA-01

విచారణ పంపండి PDF డౌన్‌లోడ్

ఉత్పత్తి వివరణ

In the age of intelligence, TFT MODULE helps us to present the required data in the form of images. The quality of the TFT module has a critical impact on its application. What are the advantages of the Victronix 12.1 inch 1280x800 IPS TFT Module? At first, its wide viewing angle 85° in all directions and high contrast ratio 1000:1 make it more suitable for harsh industrial. Secondly, it has a high brightness of 550 cd/m², and its backlight lifetime is also for up to 30,000 to 50,000 hours, ensuring that it can be used for clarity and hours of use in different lighting situations. Besides, this 12.1inch TFT module has an active area of 261.12×163.20mm and outline dimensions of 278.00×184.00×7.1mm, RoHS-compliant, and shock-resistant.

Victronix 12.1inch TFT module is widely used in Industrial HMIs, medical devices, test equipment, and embedded systems that require high reliability and clarity.

సాధారణ లక్షణాలు

LCD పరామితి

అంశం	విషయాలు	యూనిట్	గమనిక
LCD రకం	Tft	-
Display color	16.7 మీ
దిశను వీక్షణ	అన్నీ	ఓక్లాక్
Grayscale inversion direction	-	ఓక్లాక్
ఆపరేటింగ్ ఉష్ణోగ్రత	-20 ~+70	℃
నిల్వ ఉష్ణోగ్రత	-20 ~+70	℃
Module size	12.1	అంగుళం
క్రియాశీల ప్రాంతం	261.12(H)x163.20(V)	mm
చుక్కల సంఖ్య	1280x 800	చుక్కలు
విద్యుత్ సరఫరా వోల్టేజ్	3.3	V
రూపురేఖల కొలతలు	278.00x184.00x7.10(10.00Max)	mm
బ్యాక్‌లైట్	11x4-LED లు (తెలుపు)	పిసిలు
బరువు	-	g
ఇంటర్ఫేస్	6/8 BIT LVDS	-
