5 అంగుళాల 800x480 ట్రాన్స్‌ఫ్లెక్టివ్ టిఎఫ్‌టి మాడ్యూల్

TFT Module can be found everywhere in life, what makes the Victronix 5 inch 800x480 Transflective TFT Module different from other manufacturers? At first, its 200 cd/m² typical luminance and 60:1 contrast ratio ensure it is sunlight readable and energy efficient. Secondly, it not only supports 24-bit RGB parallel, touch panel control pins (XR/YD/XL/YU) but also integrates a 6S2P white LED array (from30,000 to 50,000 hour lifespan) ensuring that it can be used for long-lasting in different industrial situations. Besides, it was validated through rigorous environmental testing (thermal cycling, humidity) to operate reliably from -20°C to +70°C.

This Victronix 5 inch TFT Module is suitable for industrial HMIs, outdoor equipment, portable instruments, and medical devices requiring sunlight-readable performance.

Key Features:

· 5-inch transflective LCD

· 800×480 resolution

· Sunlight-readable & energy-efficient

· Robust design for harsh conditions

General Specifications

VXT500BWEF-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit. The 5.0¢¢ display area contains 800X480 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.

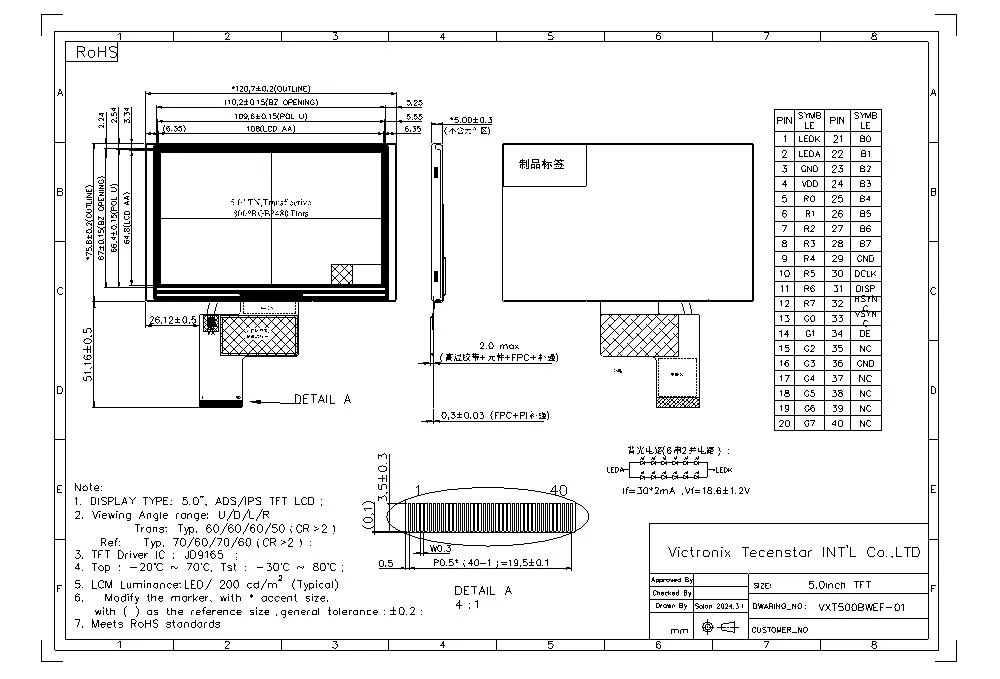

Outline.Drawing
